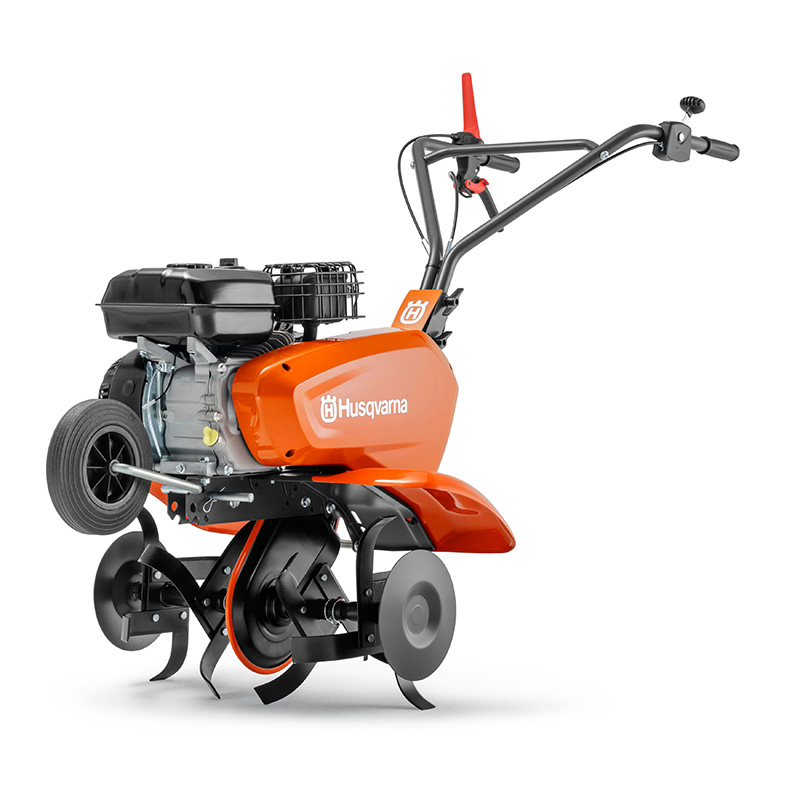

Husqvarna TF 325 Tiller

Description

Husqvarna TF 325 Tiller is a reliable, easy to handle cultivator offering features such as a dependable engine, reverse gear and detachable transmission housing with lubrication possibility. Comfortable, adjustable and foldable handlebar with gear selection, transport wheel, drag bar and plant guards improve usability and ease of storage. Optional ridger with metal wheels.

FEATURES

• Plant guards
  Protect plants outside the working area.
• Reverse gearbox
  Improves maneuverability and control.
• Detachable transmission
  Detachable transmission housing with lubrication nipple.
• Tine shield
  Minimizes debris spray from the rotating tines.
• OHV engine
  Easy-to-start, powerful overhead-valve engine.
• Handlebar-mounted gear selection
  Ergonomic handle with easy-access controls.
• Foldable handlebar
  For easy storage and transport.
• Drag bar
  Easy-adjust drag bar, for different working conditions.
• Double carry handles
  Facilitates lifting and transport.
• Transport wheel
  Simplifies transport. Easy to raise during operation.
• Versatility through accessories
  With different optional accessories this machine can be converted into an ultimate garden tool performing ridging, edging and moss raking.

TECHNICAL DETAILS

• Motor/engine manufacturer
  Briggs & Stratton
• Engine name
  CR 750
• Cylinder displacement
  163 cm³
• Net power at preset rpm Energy
  3.3 kW
• Rotational speed (min/max) max
  104 rpm
• Rotational speed (min/max) min
  104 rpm
• Engine oil capacity (L)
  0.6
• Tine diameter
  320 mm
• Working depth
  30 cm
• Working width
  60.0 cm
• Cultivator type
  Front-tine
• Number of tines
  4
• Transmission type
  Chain/Manual
• Transmission steps forward
  1
• Transmission steps reverse
  1
• Detachable transmission
  Yes
• Vertically adjustable handlebar
  Yes
• Horizontally adjustable handlebar
  Yes
• Foldable handlebar
  Yes
• Handlebar-mounted gear selection
  Yes
• Reverse gearbox
  Yes
• Drag bar
  Yes
• Plant guards
  Yes
• Transport wheel/s
  1
• Ridger
  Available as accessory (with metal wheels)
• Weight
  46.0 kg
• Sound pressure level at operators ear
  82.0 dB(A)
• Sound power level, measured
  92.5 dB(A)
• Sound power level, guaranteed (LWA)
  93.0 dB(A)
